#117 STS Lab Note: The Six Types of Hydroponic Systems Explained

Throw out the textbook – evaluate the true mechanical advantages of the 6 core hydroponic system classes
before building your footprint. This lab note looks at modern hydroponic systems. It deconstructs the physical limits of NFT, DWC, RDWC, Kratky, Wick, Ebb-and-Flow, Dutch Bucket, and Aeroponic architectures. Furthermore, it shows our paradigm shift away from old-world “sterile” hydrocarbon based nutrient solutions into living organic system in VermiPonics.

Summary

1. Introduction

Introduction

One of the first questions new growers ask is surprisingly difficult to answer:

“Which hydroponic system should I build?”

Search online and you’ll quickly discover dozens of different names—NFT, DWC, Kratky, Dutch Buckets, Wick Systems, Aeroponics, Fogponics, Bubble Buckets, RDWC, Bato Buckets, Flood-and-Drain…

It feels as though every system is completely different.

This Lab Note compares the strengths, weaknesses and practical applications of each system to help you choose the right architecture before spending money building it.

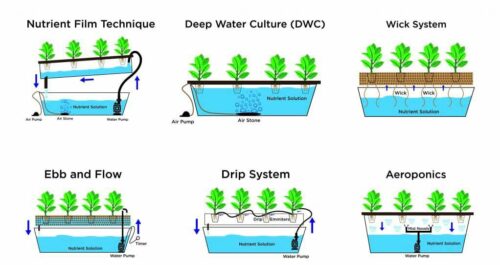

2. The Six Types of Hydroponic Systems

Every

Every hydroponic system is simply an engineered matrix designed to deliver two essential elements to a root zone simultaneously: water-soluble mineral ions and dissolved atmospheric oxygen (O₂). How a system manages the fluid dynamics of this delivery determines its operational energy cost and vulnerability to mechanical failure.

1. Nutrient Film Technique (NFT)

2. Deep Water Culture (DWC) & Variations

• Fluid Dynamics: Roots are continuously and completely submerged in a massive, static body of nutrient solution. Crops are suspended at the surface on floating rafts.
• Aeration Vector: Forced atmospheric air injection via dedicated mechanical air pumps and porous stone diffusers.
• The Variations:
  • Kratky Method: A completely passive non-active system. The reservoir is filled once; as the plant consumes the liquid, the dropping water line naturally creates an increasing “air gap” where specialized atmospheric roots develop.
  • Recirculating DWC (RDWC): Links multiple large cultivation buckets to a centralized master reservoir via high-volume piping, using a continuous inline pump loop to equalize nutrient concentrations and dissolve oxygen uniformly across heavy-feeding fruiting crops (Tomatoes, Peppers).
• Failure Modes: Standard DWC is highly energy dependent. If power drops, the massive submerged root zone rapidly strips the remaining dissolved oxygen from the stagnant water, triggering an immediate anaerobic shift where destructive, Pythium (root-rot) bacteria thrive.

3. Passive Wick Systems

• Fluid Dynamics: A completely passive sub-irrigation architecture. Plants reside in an inert, porous aggregate (perlite, vermiculite) that sits directly above a static, non-circulating nutrient reservoir.
• Aeration Vector: Capillary action draws fluid upward through high-surface-area fibrous wicks (such as self-watering cord), pulling fresh air down into the substrate pores as the moisture is transpired by the canopy.
• Failure Modes: Severe mineral salt scaling at the upper substrate layer due to surface evaporation. Highly unsuited for large, high-transpiration crops, but an elite, zero-energy configuration for seedling germination and localized propagation runs.

4. Ebb and Flow (Flood & Drain)

5. Dutch (Bato) Buckets

• Fluid Dynamics: Adapted directly from industrial European and Israeli field practices. Individual cultivation blocks are lined up sequentially along a common drainage line. A centralized pump applies a low-pressure drip feed to the top of each bucket, which gravity-drains through an internal siphon elbow.
• Aeration Vector: The drainage elbow is designed to retain a permanent 25-40mm safety reservoir of water at the very bottom of the bucket, leaving the upper 80% of the aggregate media highly aerated and moist.
• Failure Modes: Clogging of micro-drip emitters by mineral scaling or fine media particles. However, the internal water reserve provides a massive structural buffer against pump failures.

6. Aeroponics & Fogponics

• Fluid Dynamics: Roots are suspended completely naked inside a sealed, dark chamber, with no solid aggregate medium whatsoever. High-pressure pumps drive nutrient solutions through atomizing nozzles to spray the root zone with a micro-fine mist. Fogponics adapts this by utilizing piezo-electric ultrasonic transducers to generate a ultra-low-micron dry fog.
• Aeration Vector: Maximized. The roots are constantly suspended in open, oxygen-saturated air.
• Failure Modes: High technical overhead. The total lack of substrate means that any single nozzle clog, electrical trip, or pump failure will cause immediate, catastrophic crop death within minutes. Requires advanced sensory monitoring loops (IoT) to ensure commercial viability.

3. The STS Low-Tek Option: Vermiponic Dutch Buckets

Quick Note: In this system water is drip fed in the annulus between the Dutch bucket and bag with vermiponic media. This combines bottom feed with Bato bucket principles for a Organic Hydroponic Solution.

Practical Hydroponic notes:

1. The Container Profile: Select heavy-duty, straight-sided square buckets. Straight walls allow for seamless media extraction and root-ball clearing at the end of a heavy production season. If using semi-translucent or clear containers, you must coat the exterior surfaces in opaque paint to prevent light penetration from fueling massive internal algae blooms.
2. The Siphon Placement: Drill your outlet drainage holes exactly 25 mm (1 inch) up from the absolute bottom of the bucket container.
3. The Stratified Media Bed: Fill the bottom 25 mm of the container with clean, coarse 19 mm drainage gravel. This forms a fluid channel around your siphon outlet, and ballast for container. In container place a bottom-perforated HDPE bag and fill with Vermiponic Media. The media acts as Terra Preta soil, with full Soil Biome, or BAM!.
4. The Low-Energy Irrigation Schedule: Because the bottom 25mm gravel layer retains a permanent pool of nutrient solution, the Vermiponic Media pulls moisture upward via capillary action. You do not need to pump water continuously. Configure a simple, cheap mechanical 24-hour pin timer to run your delivery pump for just 15 minutes every 4-6 hours. In peak summer heat, simply scale this up to hourly 15-minute bursts during peak afternoon transpiration heat.
5. Thermodynamic Stabilization: Bury your main liquid nutrient reservoir directly into the ground. Soil acts as a massive thermal heat sink, keeping your water temperatures cool and stable, which significantly maximizes the fluid’s natural ability to hold dissolved oxygen while suppressing root-zone pathogens.
6. The Delivery Lines: Ensure all supply feeds and return lines utilize high-density, black opaque tubing to completely deny light to the water stream, neutralizing plumbing scale blocks before they can initiate.

Conclusion: System Resilience Equals Yield Security

[ Pure Sterile Nutrients ] + [ Constant Power Reliance ] ===> High Supply Chain Vulnerability
                                       VS.
[ Bio-Inoculated BAM! ]  + [ Hybrid Safety Reservoirs ] ===> Total Farm Sovereign Security

Selecting a hydroponic system architecture is not about picking the trendiest technology; it is an exercise in engineering risk management. Transitioning your infrastructure to a bio-inoculated, VermiPonic hybrid array strips the complexity out of your farm footprint, safeguards your investment against immediate electrical or mechanical grid failures, and hands you total control over production outputs.
