Regulated Supply Ultrasonic Humidifier
Smart Commercial – 550m³/h Fan

The Intelligent Upgrade for Controlled Environment Footprints.

When your cultivation space outgrows standard room setups, your hardware has to work harder. But scaling up your humidity shouldn’t mean doubling your electricity bill or installing complex new electrical sub-boards.

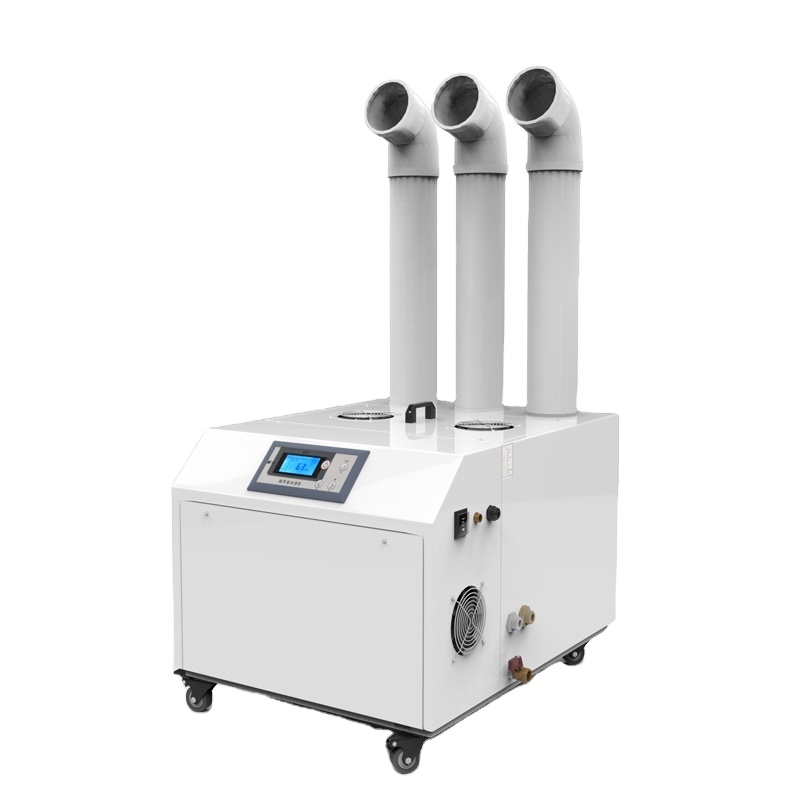

The STS 20kg/h Commercial Ultrasonic Humidifier is the engineered answer for expanding farms. Built on the ultra-stable JDH industrial chassis framework, we have optimized this unit to deliver maximum biological return for minimal input.

Optimized Outlet Control

To match this massive jump in mist volume, we upgraded the circulation system to triple outlets with triple circulation fans for a high-capacity 550 m³/h fan assembly.  It drives relative humidity straight to the 90%+ sweet spot without pooling water on your floors or choking on its own mist backpressure.

Industrial Stainless Steel Discs – Built for 24/7 Runtime

Just like its smaller brother, this machine completely eliminates the fragile ceramic discs found in generic retail units. By utilizing heavy-duty, commercial-grade Stainless Steel ultrasonic discs, the transducer heads can run non-stop without thermal or physical degradation, pitting, or cracking under continuous farm use.

The Autofill Water Supply System

Continuous Plumbed Line: Connect it directly to a main low-pressure water line via the internal float valve for automated, 24/7 autofill operation.

Technical Specifications:

• Model Platform: STS-20-Kg/h (Customized JDH-18Z Enhanced Chassis)

• Transducer Core: 12-Head Gen3 Stainless Steel Arrays (24/7 Rated)

• Mist Output Capacity: ± 20 Litres per hour maximum fog volume, minimum of 18 kg/h

• Circulation Fans: 550 m³/h High-Volume Triple Output

• Power Consumption: 1150W (Ultra-efficient mist-to-power ratio)

• Voltage Requirements: 220V–240V AC, 50Hz (Standard SA Mains – single phase)

• Effective Coverage Area: Up to 300m² footprint

• Manifold Outlet Size: Tailored for direct 110mm OD uPVC pipe coupling – 3 outlets

• Chassis Construction: Powder-Coated Industrial Grade Steel with integrated caster wheels

• Safety Matrix: Automated low-water detection with safety shutdown and leakage protection

Perfect For:

• Expanding commercial mushroom operations looking to maximize spatial yields up to 300m² without skyrocketing utility bills.

• High-efficiency automated greenhouse enclosures and urban cultivation operations.

• Industrial-grade multi-rack configurations where consumer gear fails.

Warranty & Support Notice: As your local technical partner, SPeS stocks 100% of the replacement parts for this platform—including drop-in UH arrays, replacement stainless discs, and  high-flow fans—ensuring your operation never suffers extended downtime.

⚠️ Please Note (Built to Order): To ensure maximum component lifespan and peak calibration, these high-ticket commercial units are built and custom-configured strictly on order to your exact facility specifications. Please allow for a brief manufacturing and testing lead time before dispatch. Contact our technical team directly to discuss your specific room layout, delivery timelines, or bulk integration needs.
